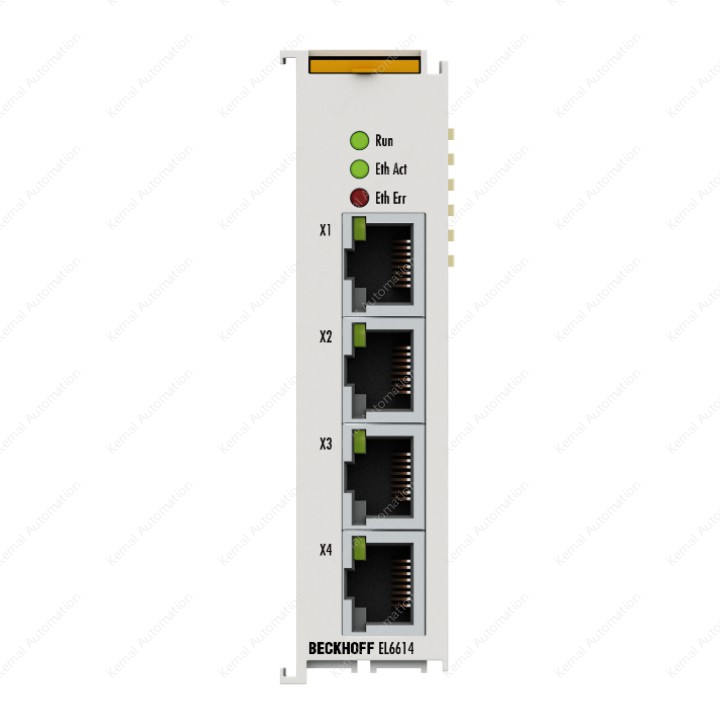

Number of Ethernet ports4Bus systemall Ethernet (IEEE 802.3)-based protocols, store and forward switching modeEthernet interface10BASE-T/100BASE-TX Ethernet with 4 x RJ45Data transfer rates10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settingsCable lengthup to 100 m twisted pairHardware diagnosticsstatus LEDsPower supplyvia the E-busDistributed clocks–Electrical isolation500 V (E-bus/Ethernet)Protocolall Ethernet (IEEE 802.3)-based protocols, store and forward switching modeConfigurationnoCurrent consumption power contacts–Current consumption E-bustyp. 310 mASpecial featuressupport of RT Ethernet, publisher/subscriber, DHCP/BootP serverWeightapprox. 95 gOperating/storage temperature-25…+60°C/-40…+85°CRelative humidity95%, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Protect. rating/installation pos.IP20/see documentationEx markingATEX:

II 3 G Ex ec IIC T4 Gc

IECEx:

Ex ec IIC T4 GcApprovals/markingsCE, UL, ATEX, IECEx
